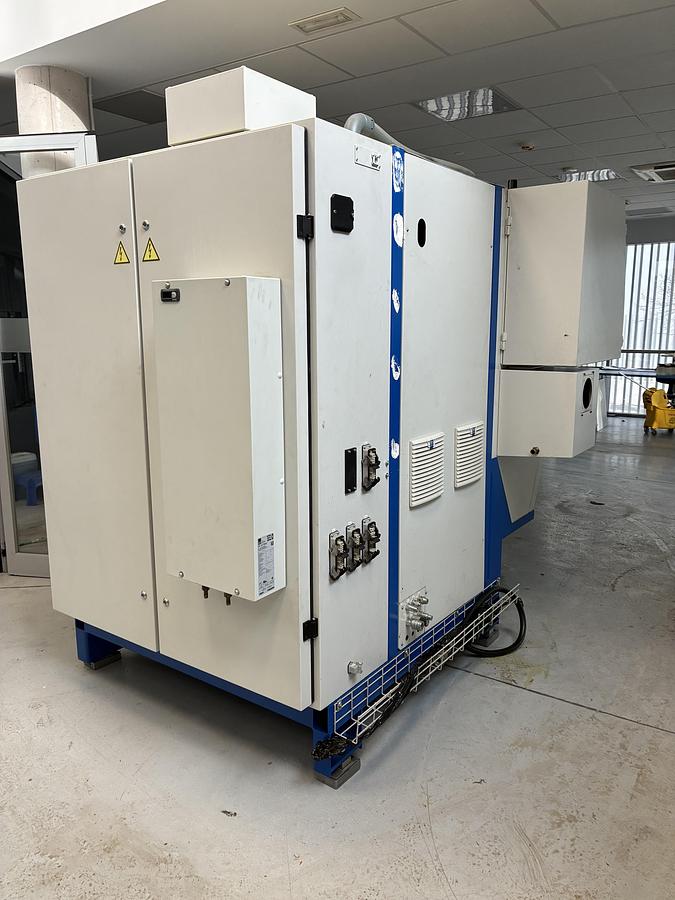

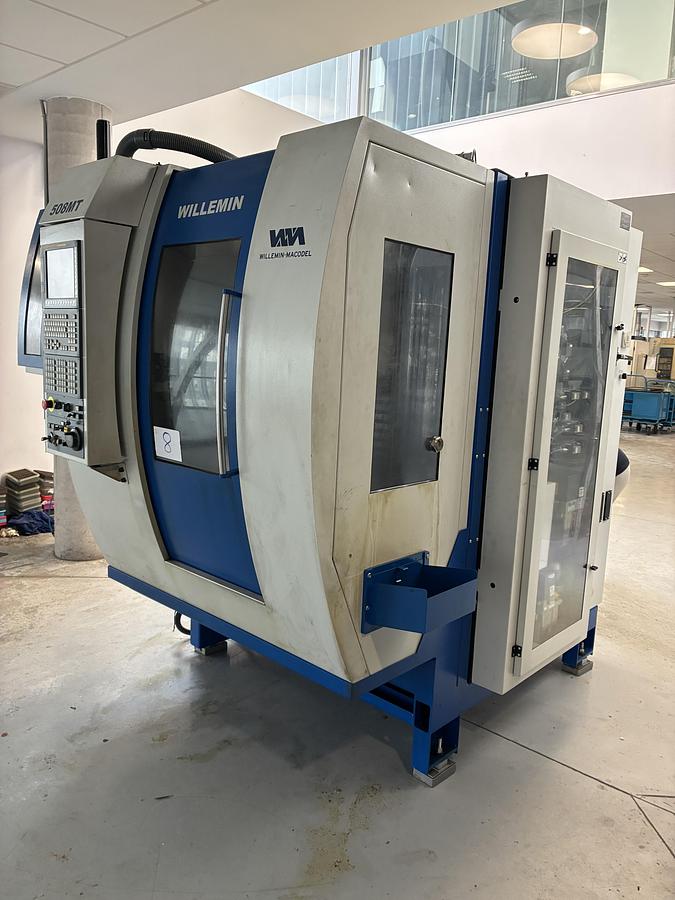

Willemin type 508 MT année 2016

5 axes

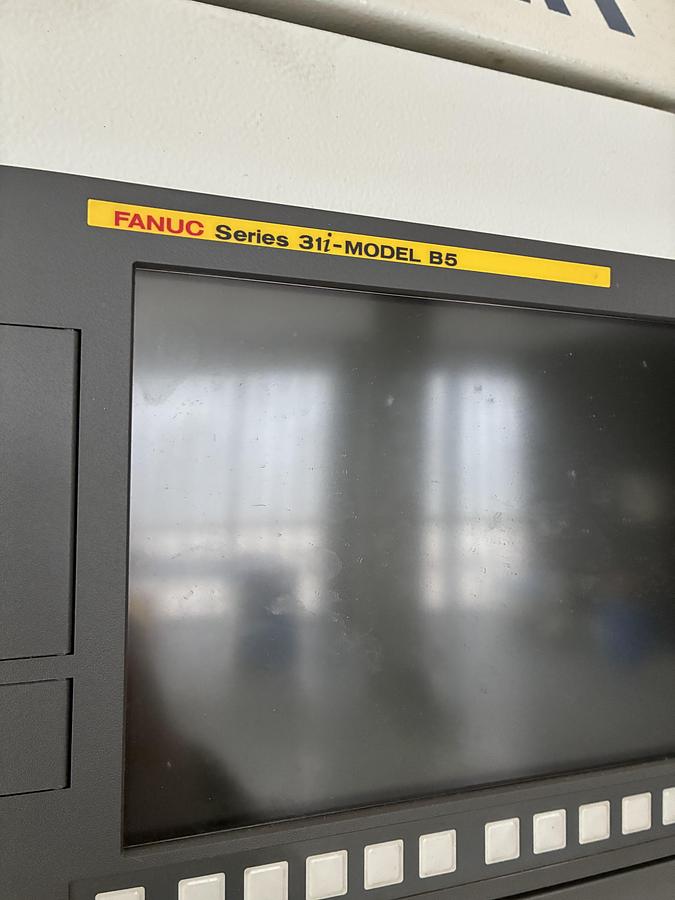

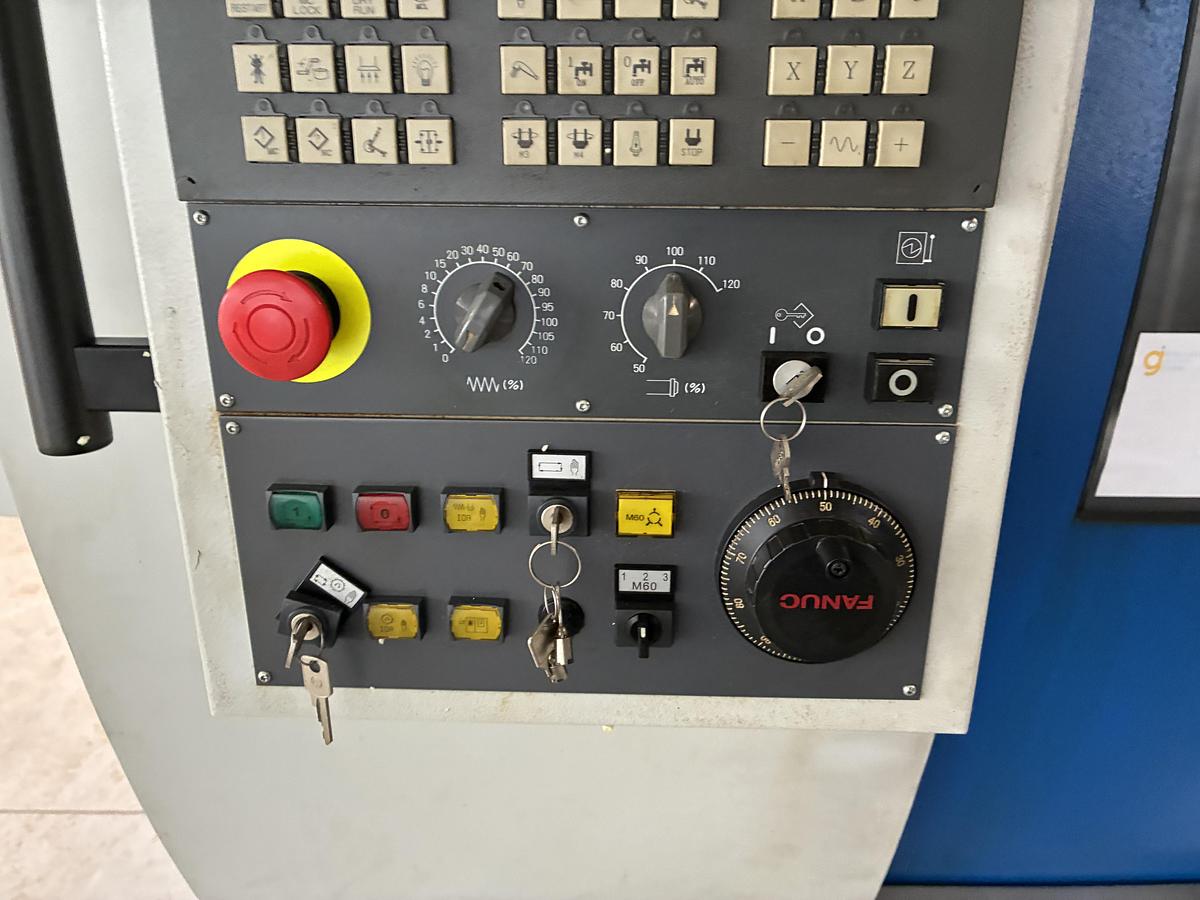

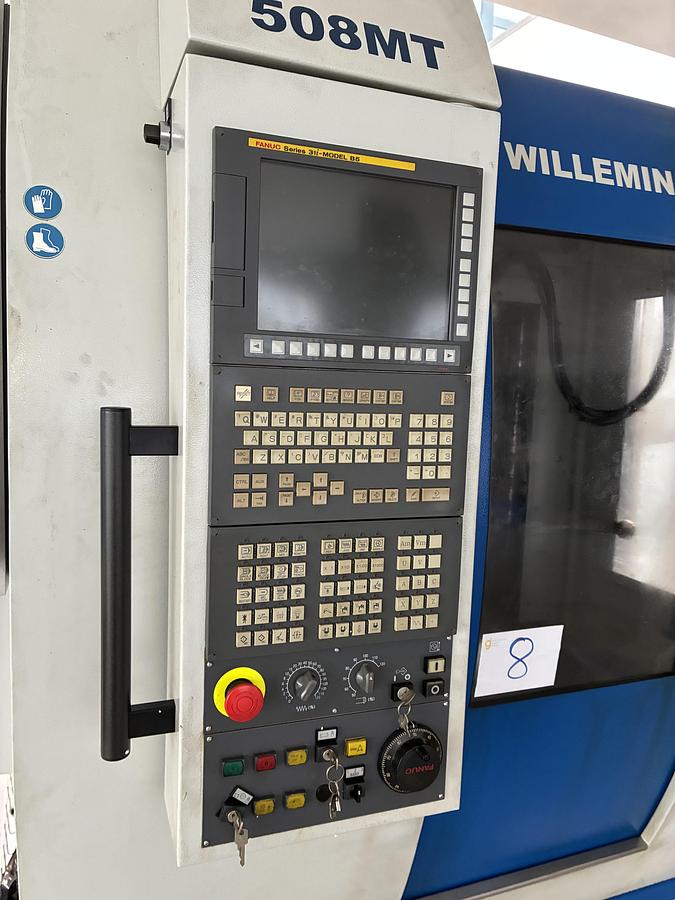

CN Fanuc 31i-MODEL B5

Année 2016

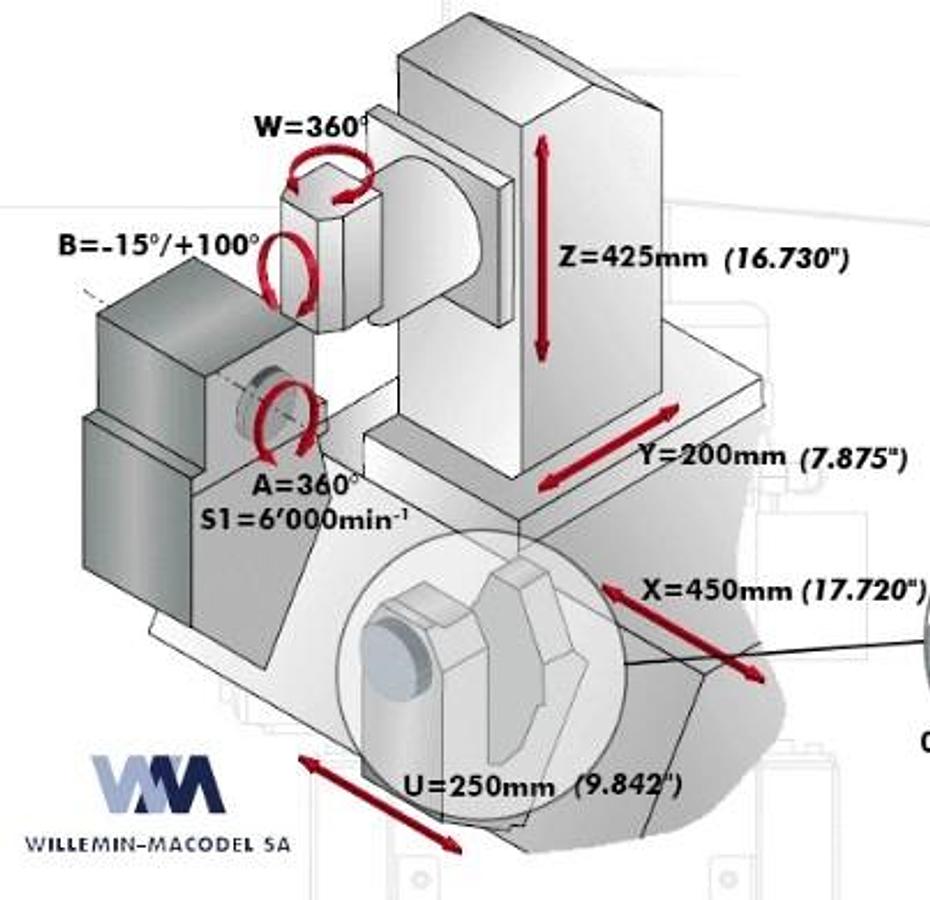

X = 450 mm

Y = 200 mm

Z = 425 mm

W= 360°

B= -15°/+100°

A = 360° / S1 = 6000 tr/min

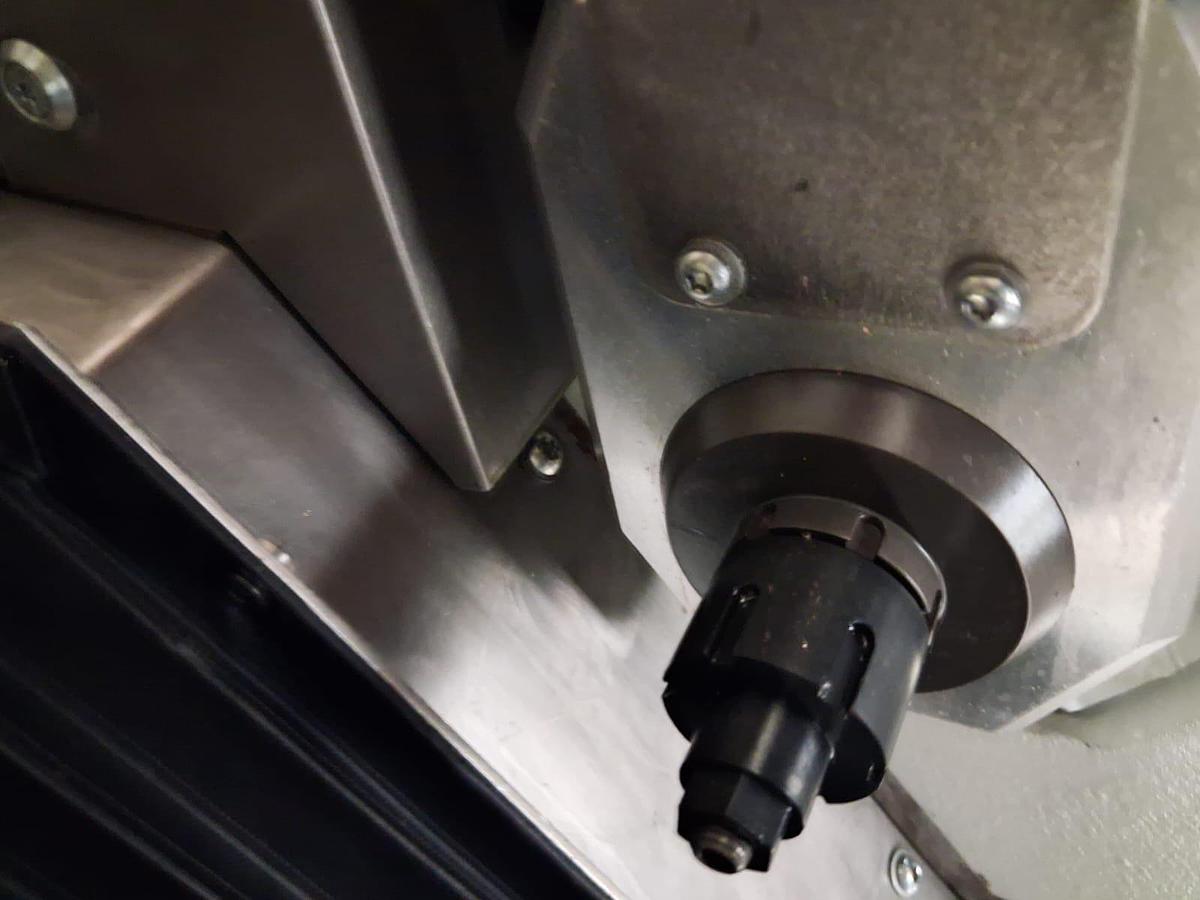

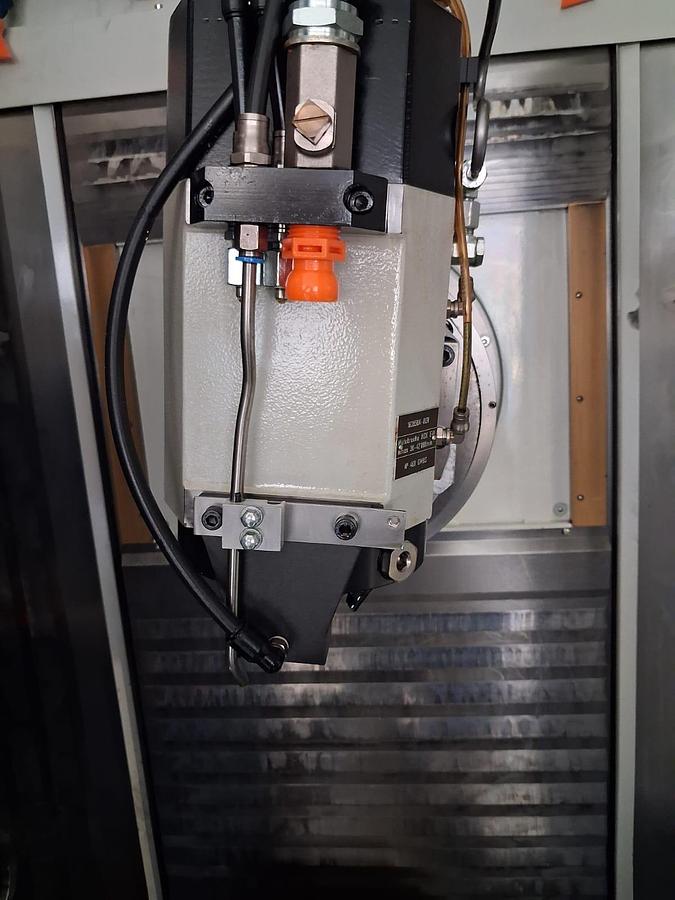

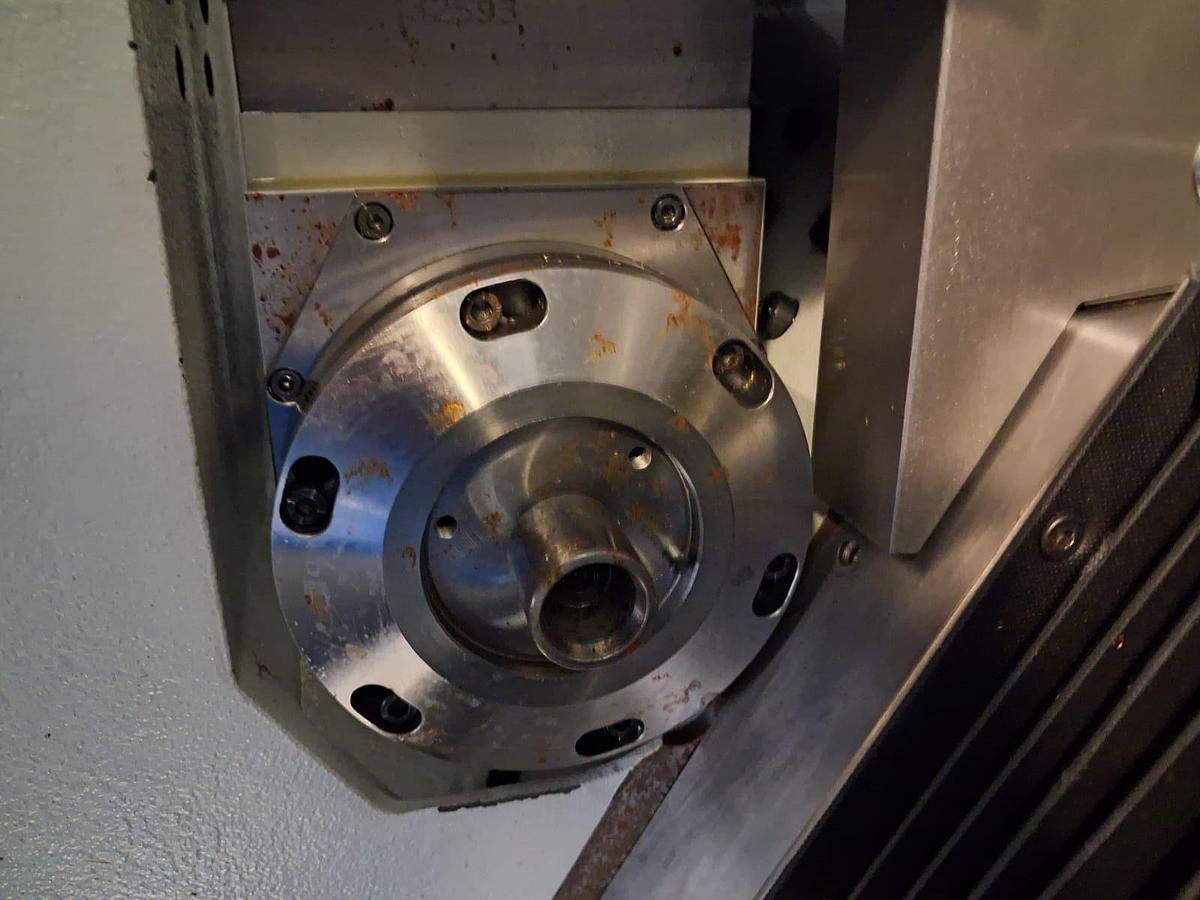

Broche 30.000 tr/min / puissance 9,7 kW / HSK-E-40

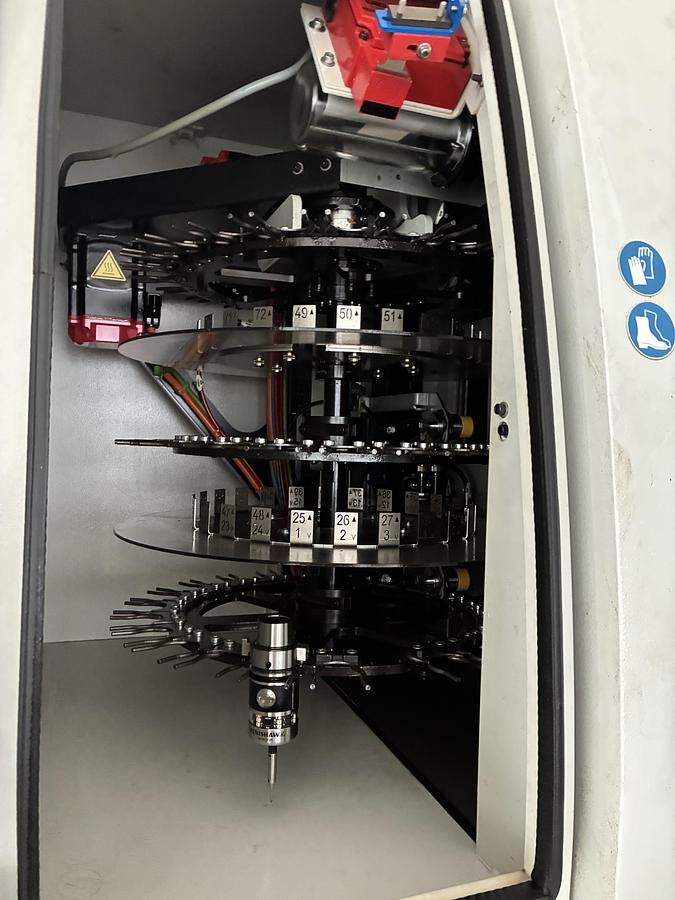

Changeur auto d’outils 72 positions

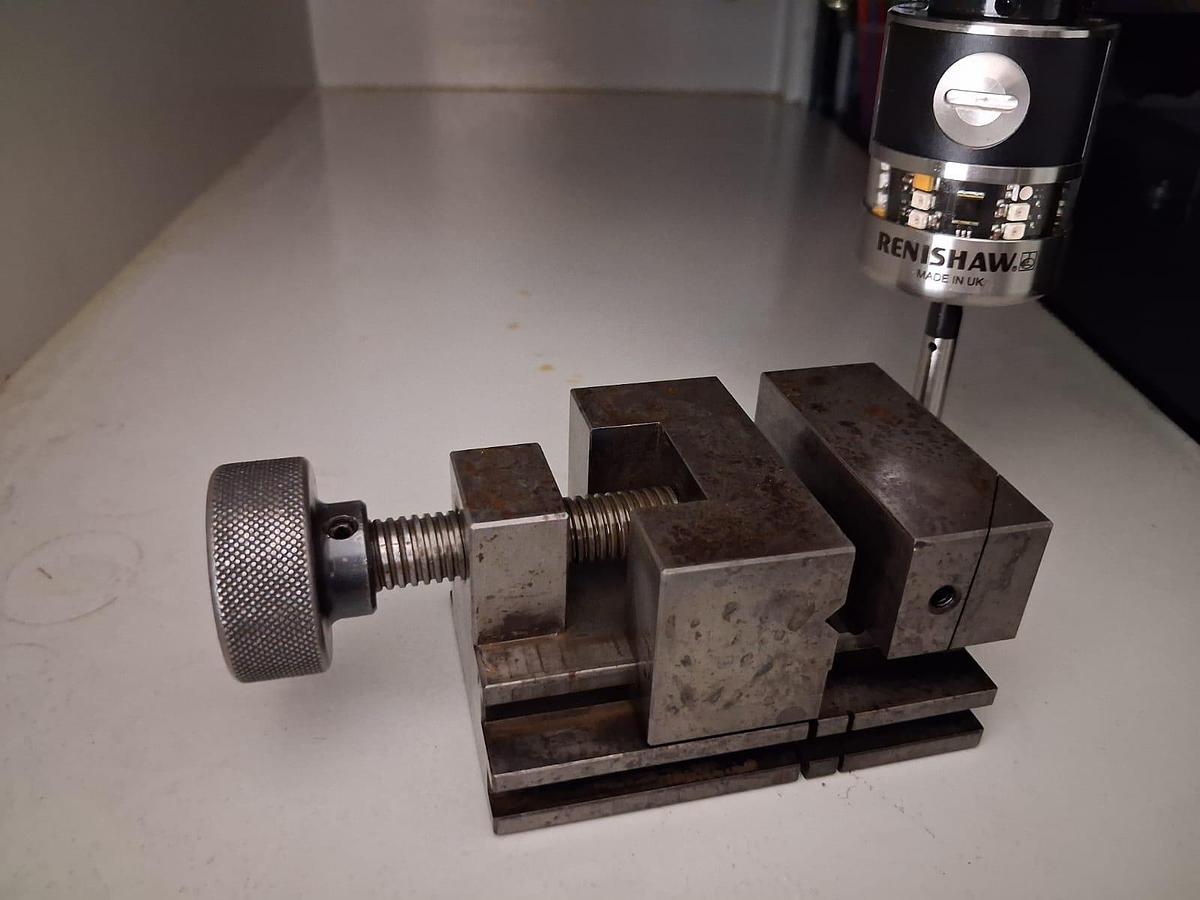

Palpeur Renishaw OMP40-2

Poids 3300 kg

Puissance totale requise 35 Kva

Tension 3 x 400 V / 50Hz / 50 A

Willemin Macdel 508MT Horizontal Machining Center with Titling Head, Turning Spindle and Back Operation capability

Multi-Process Horizontal Machining Center with Turning capability and Tilting Head and 8 Axes

Machine Type:

Machining Center

Num. of Axes:

6

Operation Type:

CNC

CNC Brand:

Fanuc 31i

CNC Brand Opt:

Table/Work Support

Spindle(s)

Direction:

Horizontal

Taper:

HSK-E40

Taper Opt:

Top RPM:

30,000

Top RPM Opt:

42,000

HP (30 min rating):

13.00

Tooling

Tool Carrier:

ATC

Num. Tools:

48

Tool Change Time (sec):

1.00

Tool Change Chip Time (sec):

3.00

Axes And Travels

Num. Axes:

6

Num. Axes Opt:

8

U Axis:

None

Travel

Max Feed Rate

Rapid Traverse

X1

17.720"

131

Y1

7.880"

131

Z1

16.730"

131

A1

360.000°

B1

115.000°
