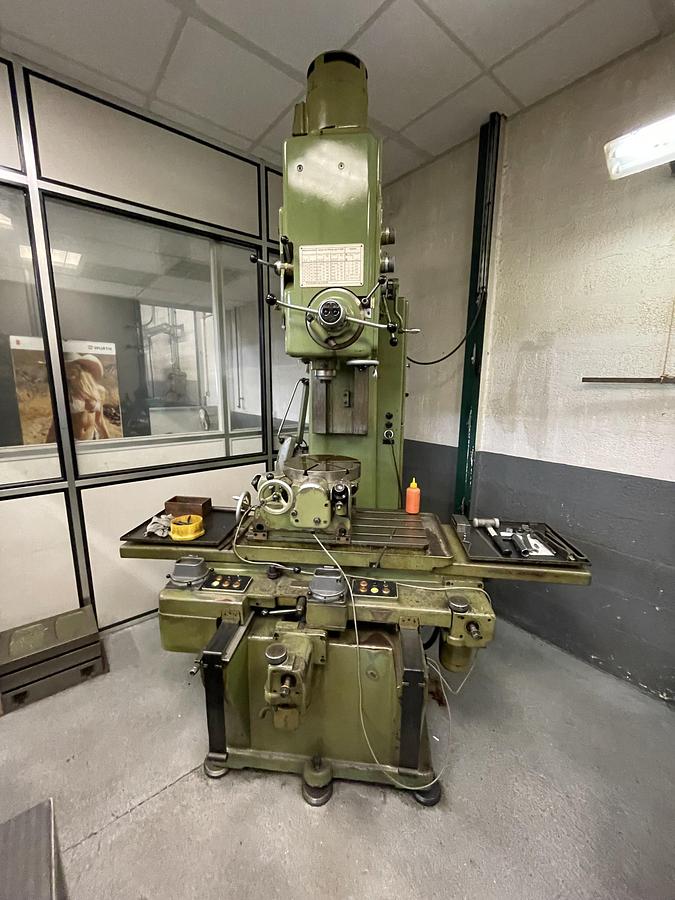

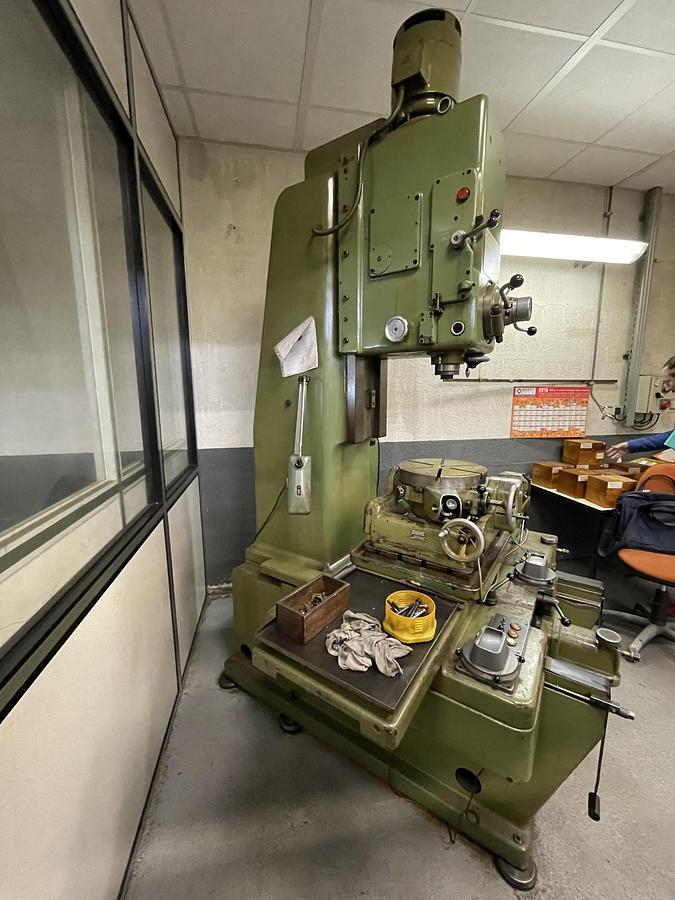

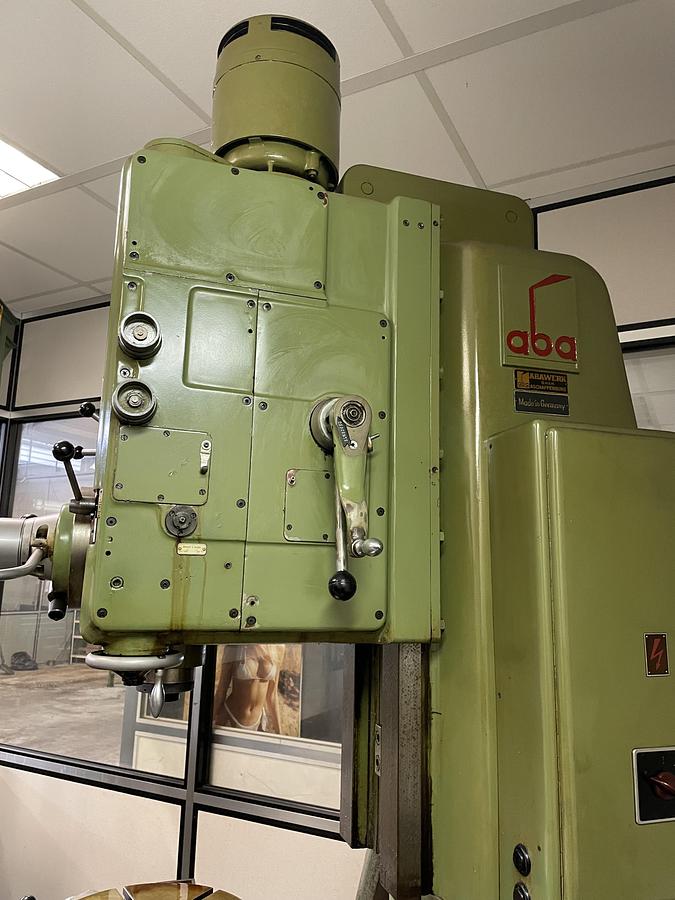

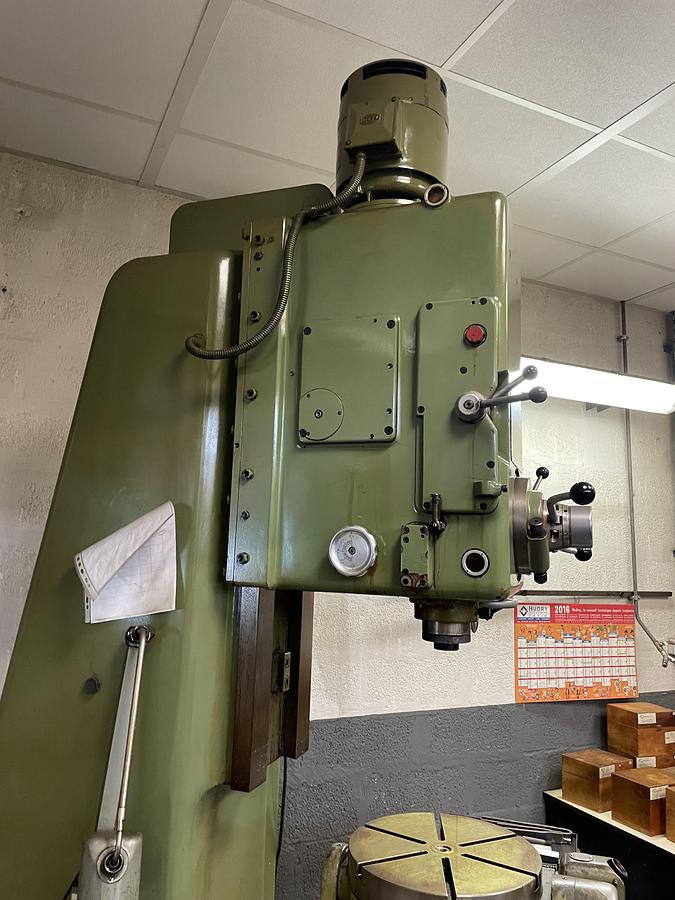

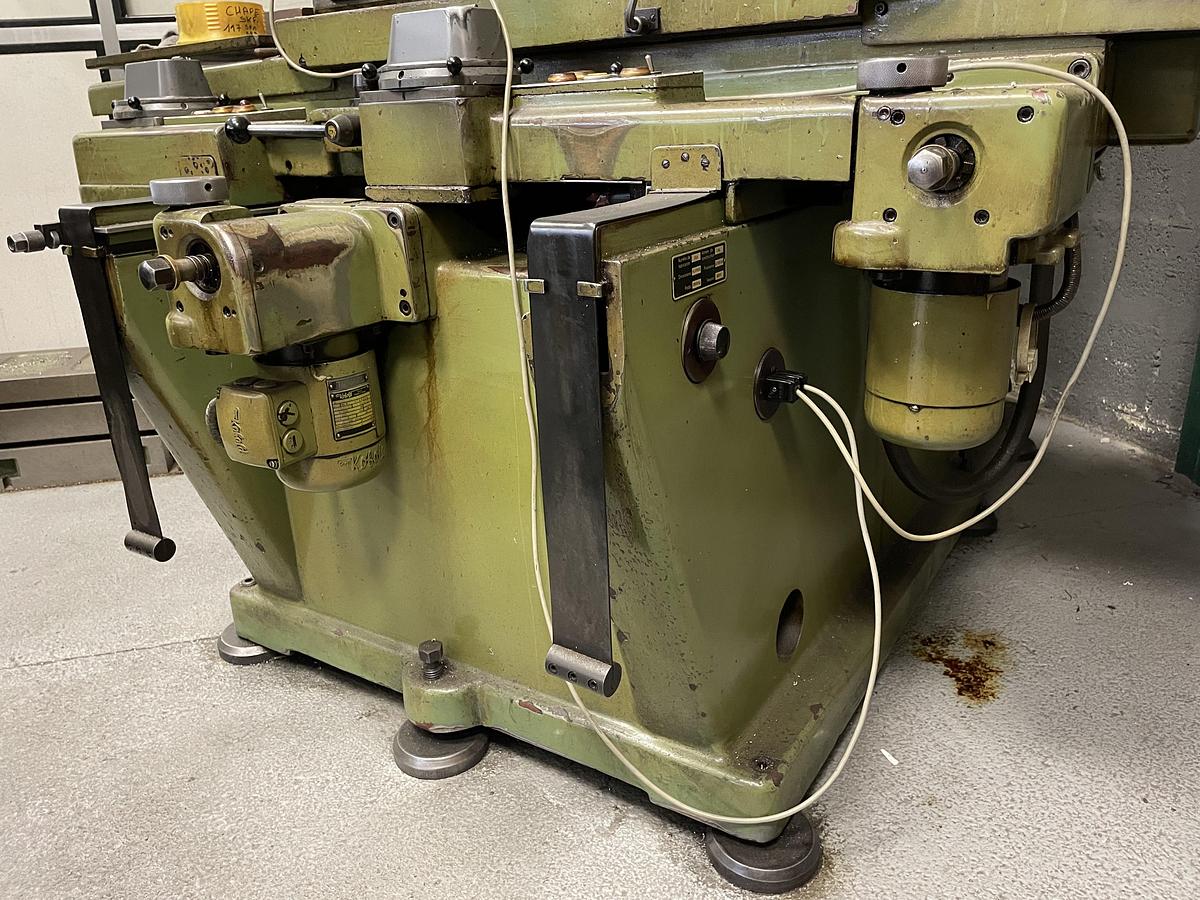

Vertical Jig boring machine ABAWERK ABA VLP 600

Jig boring machine vertical - Drilling

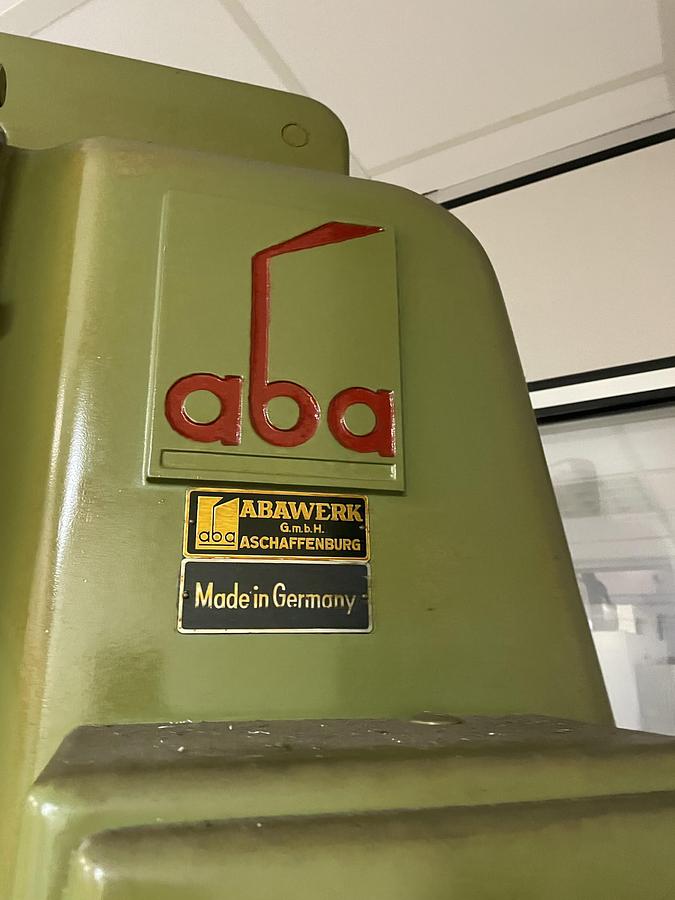

ABA - ABAWERK G.m.b.H Aschaffenburg

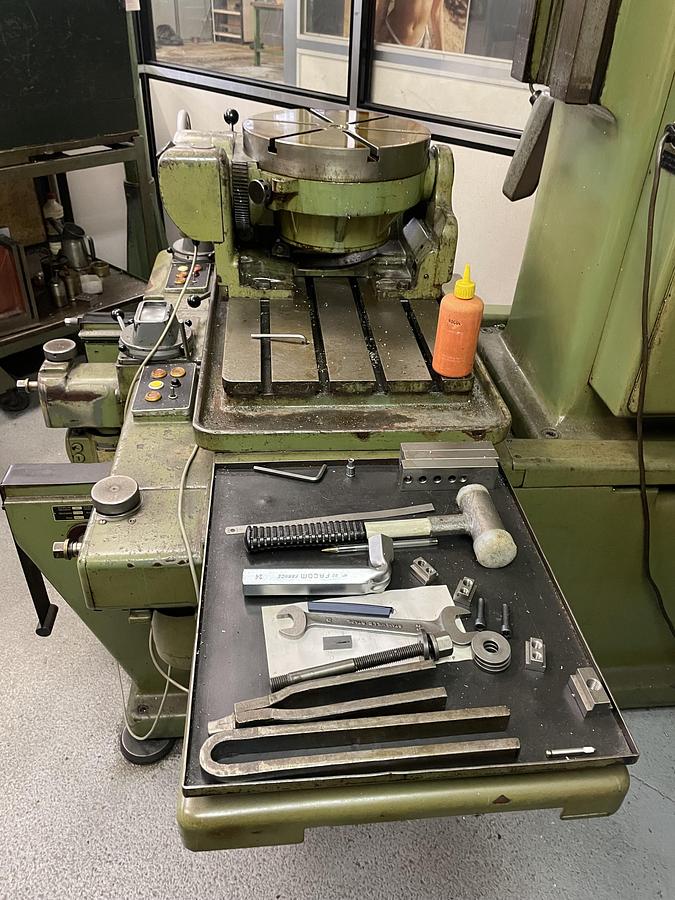

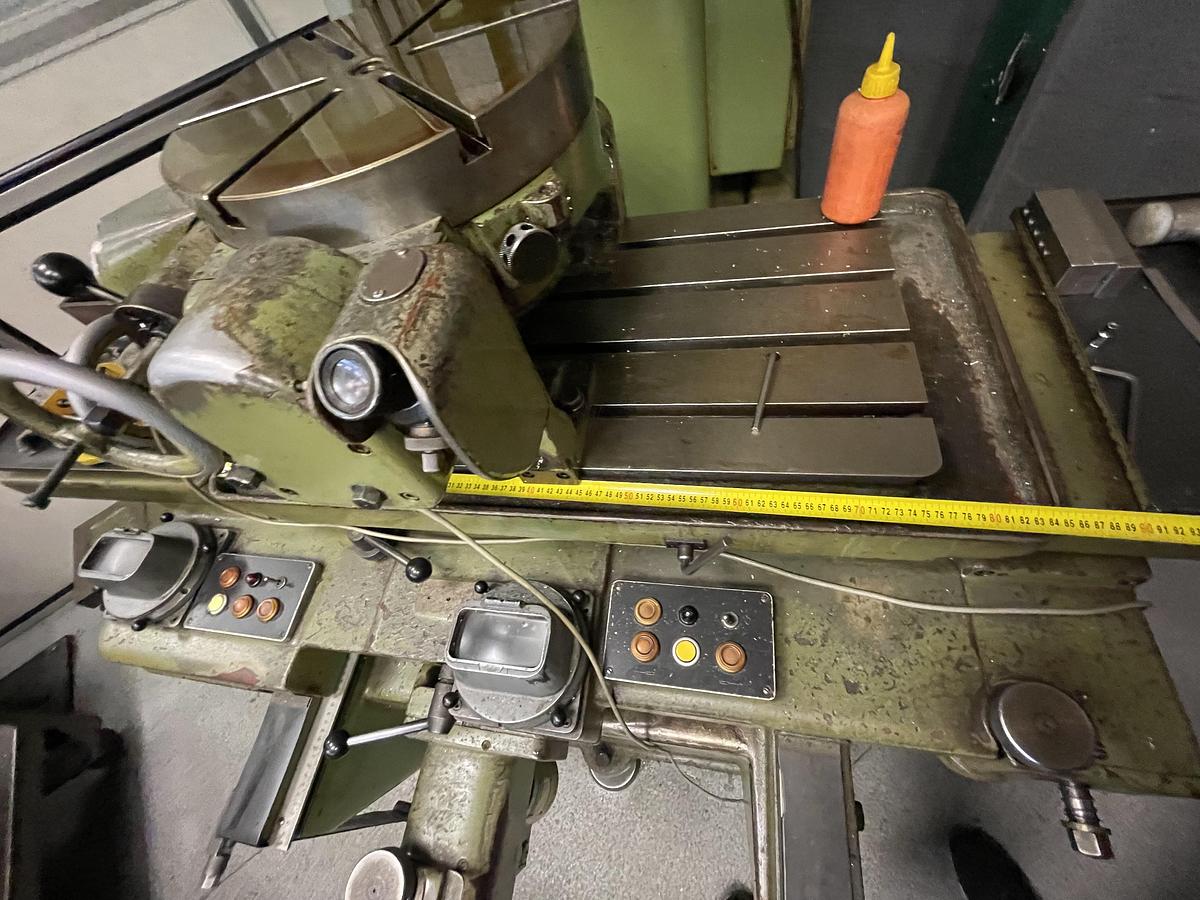

Table dimensions 750 x 400 mm with 4 T-slots

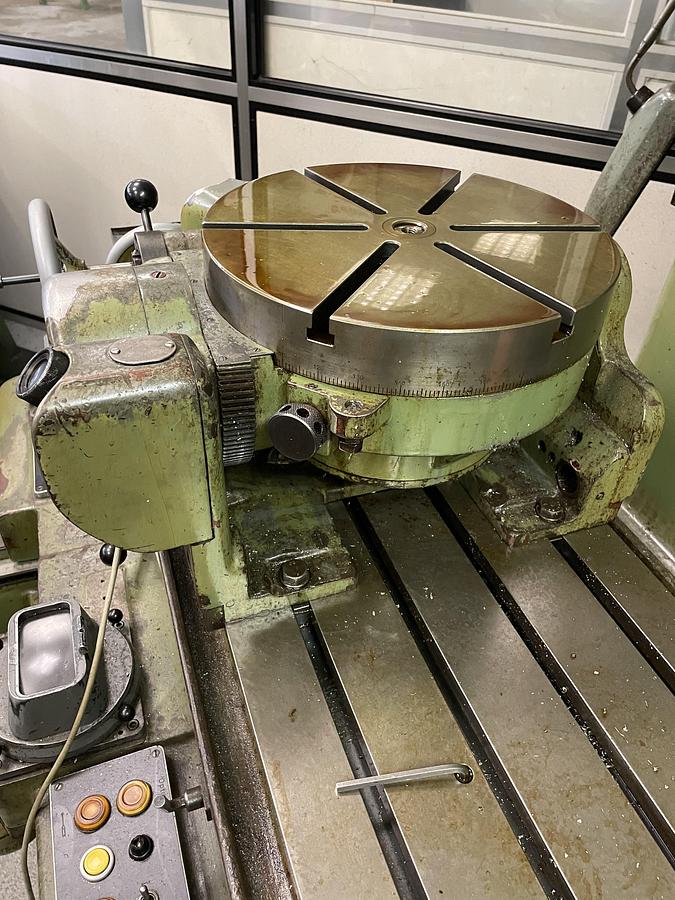

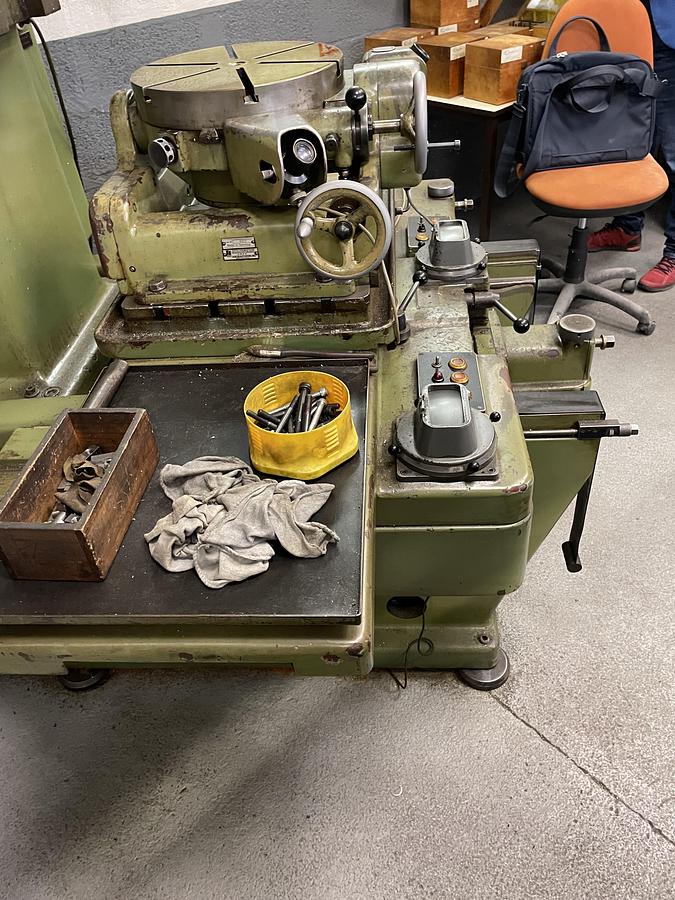

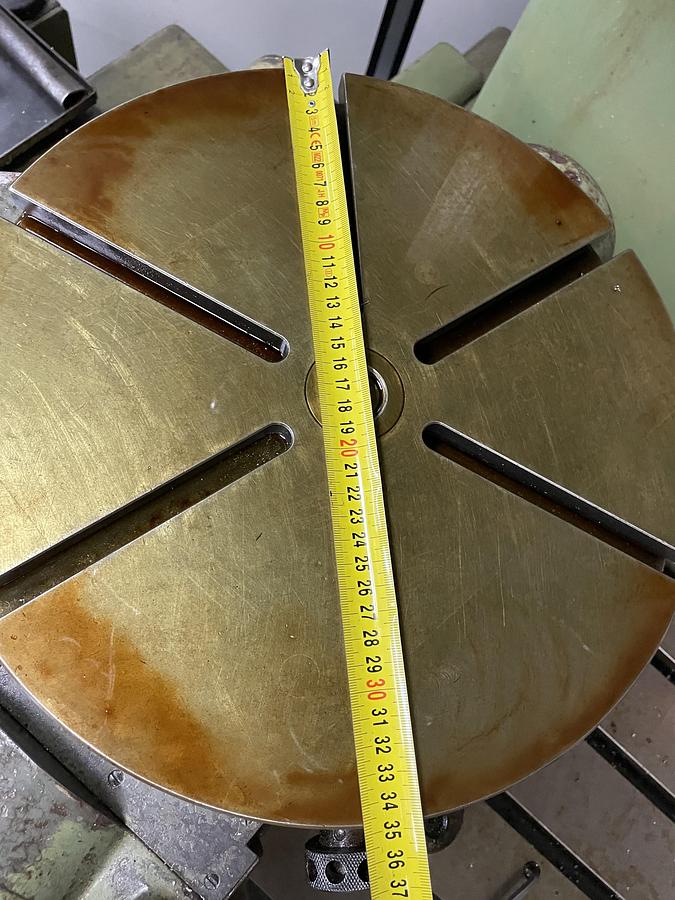

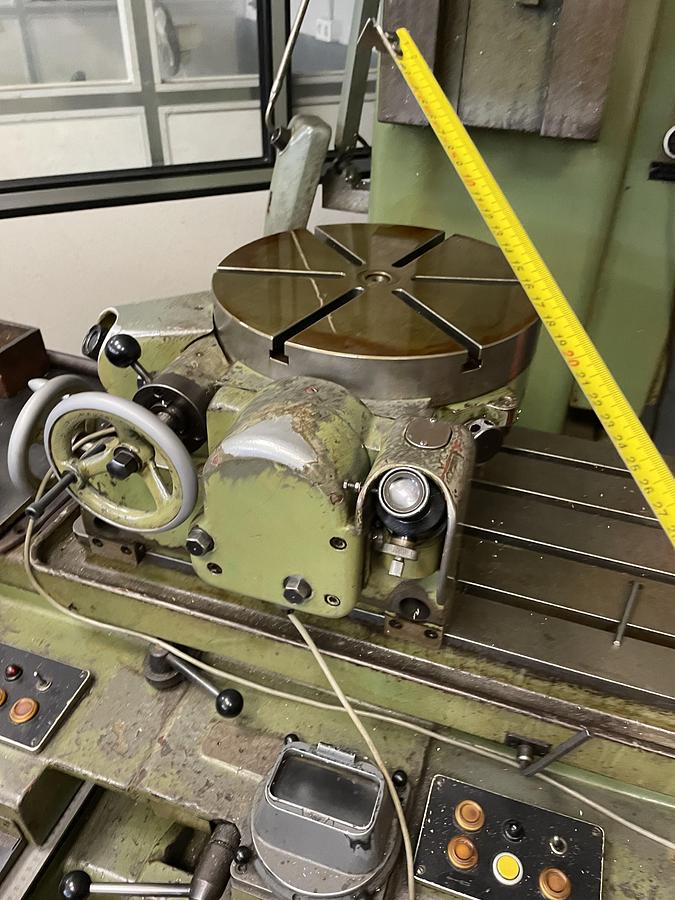

Circular table diameter 350 mm of the Manual divisor (4th axis)

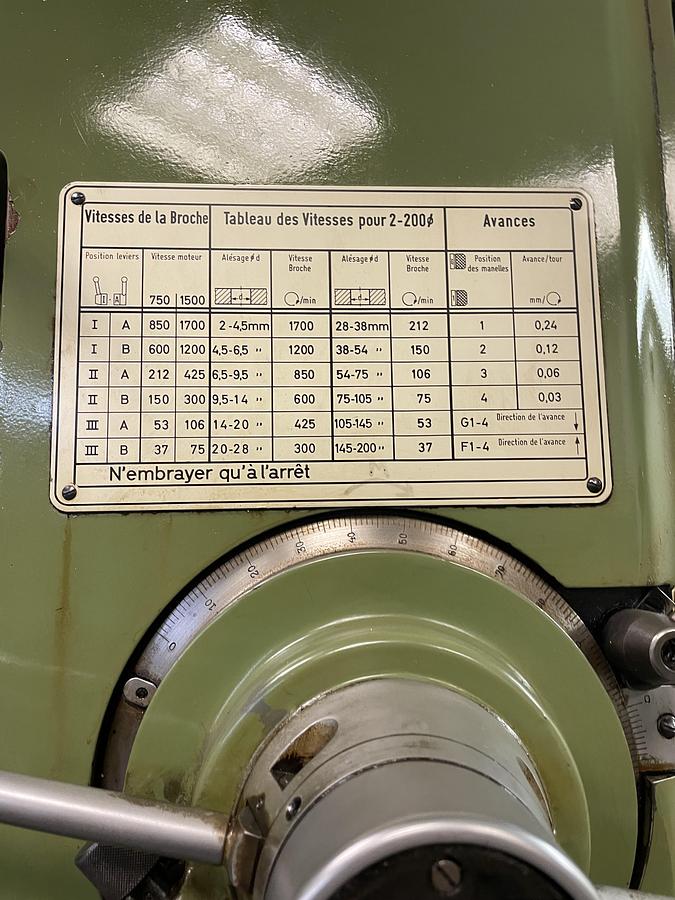

Spindle speeds from 37 to 1700 rpm

Feeds 0,03 to 0,24 mm/round

Power 1 / 1,6 kW

Tension 220 V

Weight 2800 kg + divisor

Specifications to be checked :

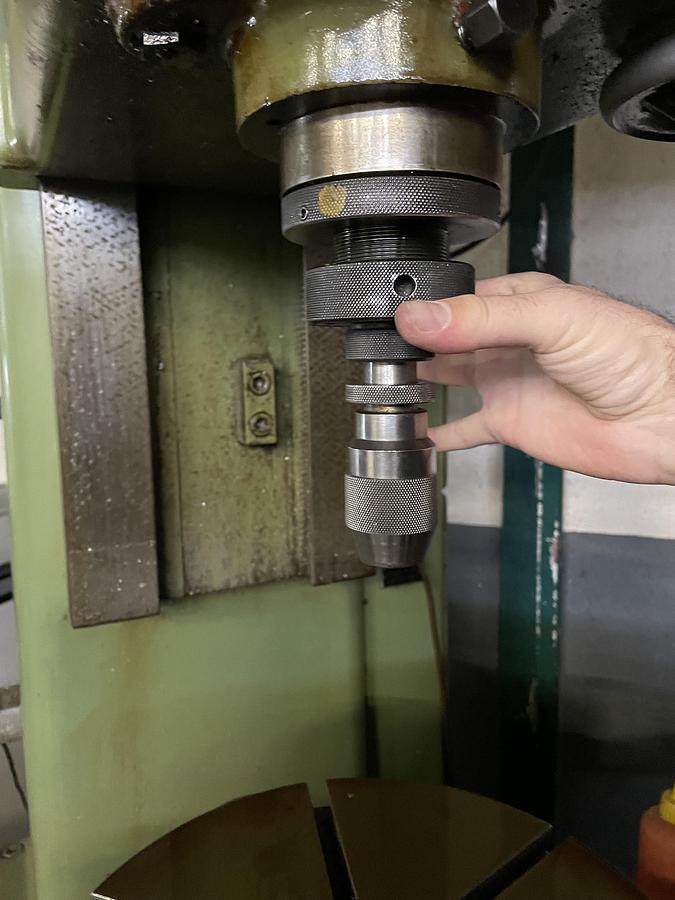

spindle diameter 70 mm

X = 650 x Y 400 x Z = 400 mm

Stroke of the jig boring spindle 120 mm

Pointeuse aléseuse ABA - ABAWERK
