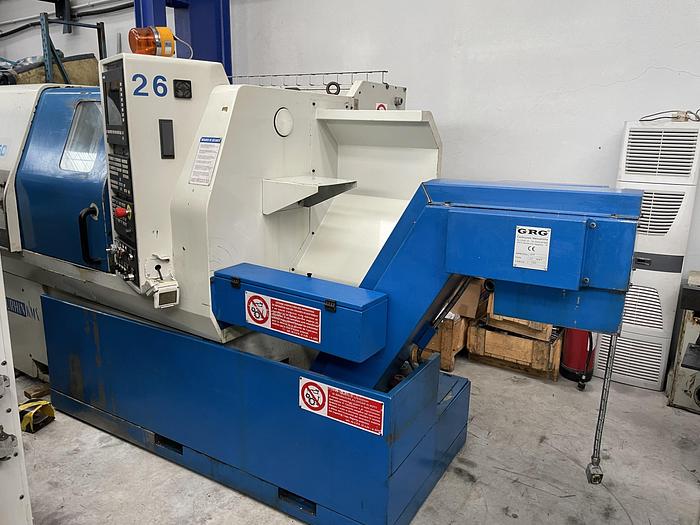

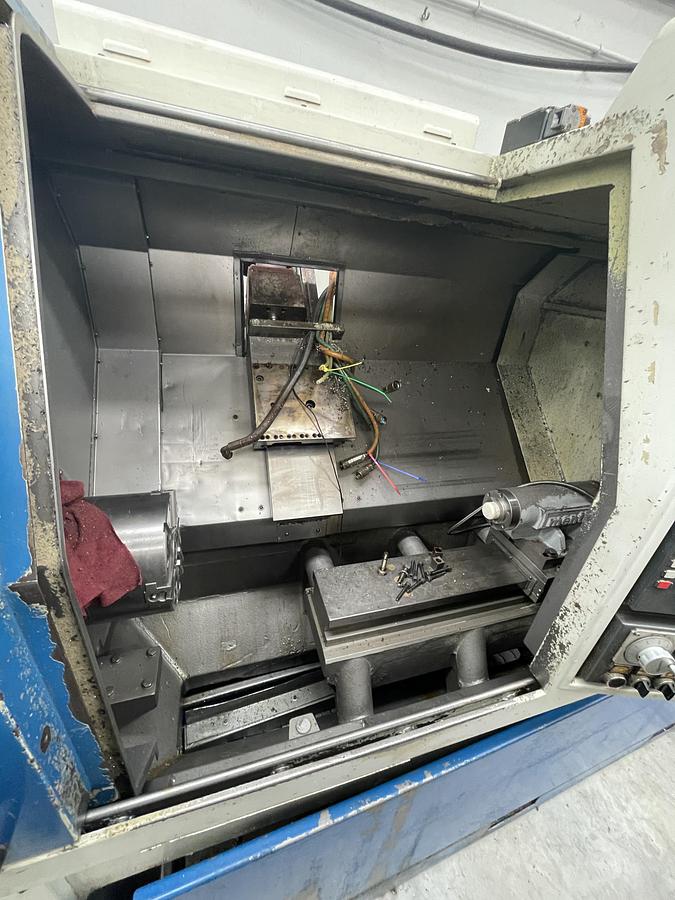

Manurhin Menti K'MX 250 - MENTI mod. 250 - 3 axis CNC lathe

Manurhin Menti K'MX 250 - MENTI mod. 250 - 3 axis CNC lathe

Contactez-nous pour le prix

ouAppelez 04 77 29 56 74

Description

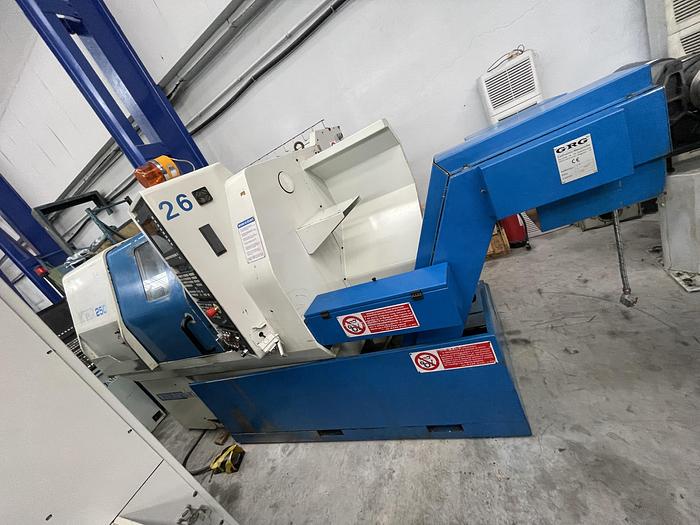

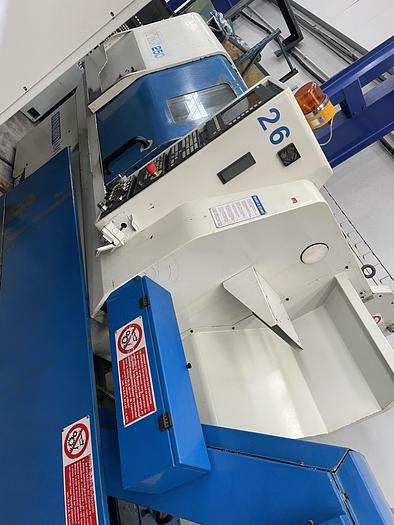

Tour CN 3 axes avec embarreur

MENTI MANURHIN K'MX 250 - MENTI mod. 250

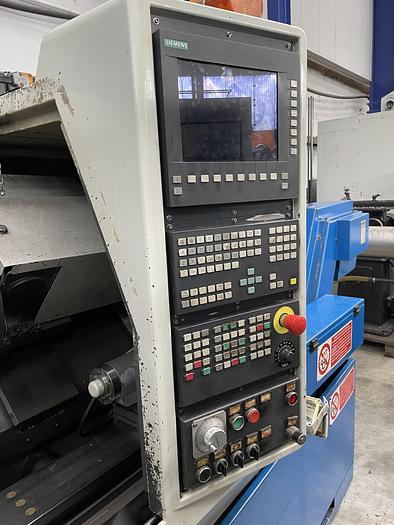

Année 2002 - CN Siemens 840D

Passage en barre Ø 60 mm

Alésage de broche Ø 66 mm

Ø de tournage maxi. 300 mm

Ø tournant maxi. 360 mm

Lg de tournage maxi. 600 mm

Distance entre pointes 870 mm

Broche (nez ISO-A6) rotation 0 à 4000 tr/min - 15 kW (S1)

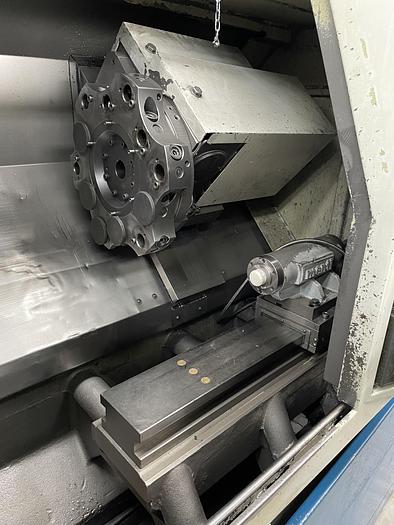

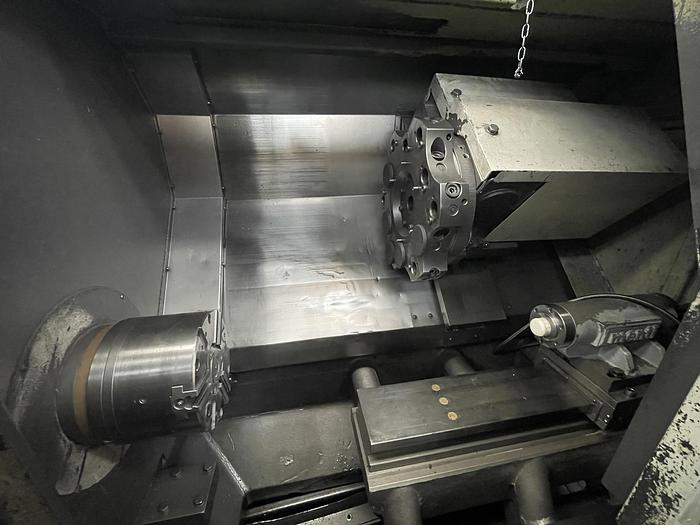

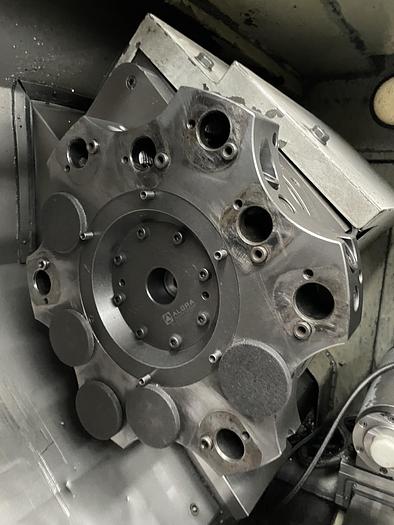

Tourelle Baruffaldi VDI 12 outils dont 6 tournants

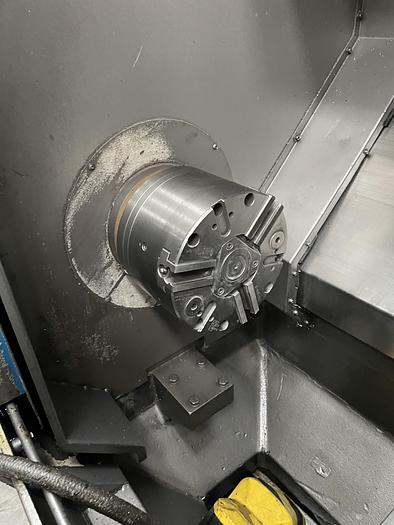

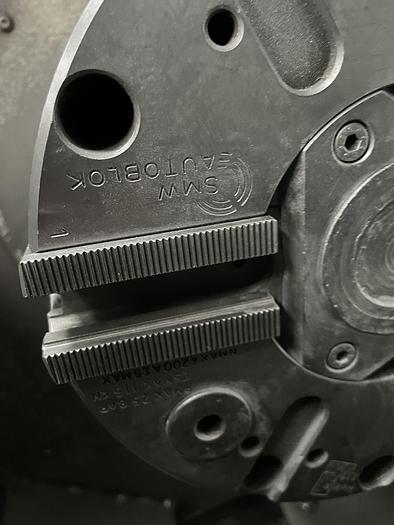

Mandrin SMW-AUTOBLOK type 210HYN-S

Course axe X = 190 mm

Course axe Z = 650 mm

Avances rapides X,Z = 18 m/mn

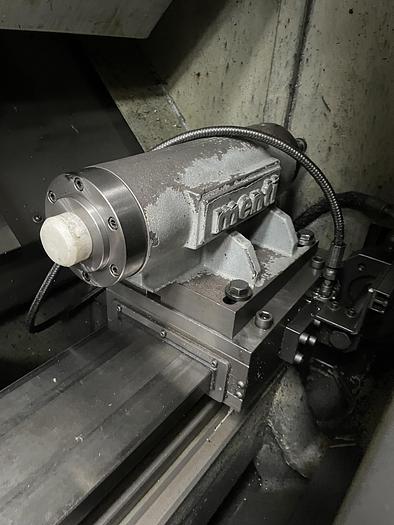

Déplacement contre-pointe piloté par un bouton sur pupitre ou par prog. (code M)

Equipé d'outillage (mors mandrins + porte-outils VDI).

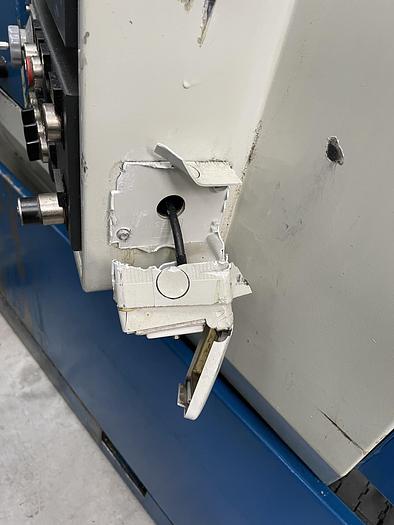

Boitier prise RS 232 endommagée

--------------------------------------------------------------------------------------------------------------------------------------------


ENGLISH VERSION

3-axis CNC lathe

MENTI MANURHIN K'MX 250 - MENTI mod. 250

Year 2002 - CNC Siemens 840D

Bar capacity Ø 60 mm

Spindle bore Ø 66 mm

Max. turning Ø 300 mm (real Ø)

Max. turning Ø of the part 360 mm (admitted Ø)

Max. turning length 600 mm

Distance between centers 870 mm

Spindle (nose ISO-A6) speeds 0 to 4000 rpm - 15 kW (S1)

Baruffaldi turret VDI 12 positions includding 6 driven tools (live tooling)

Chuck SMW-AUTOBLOK type 210HYN-S

X-travel = 190 mm

Z-travel = 650 mm

Rapids X,Z = 18 m/mn

Tailstock movement by button or prog. (code M)

Equipped with tooling package (jaws + VDI tool holders).

Caractéristiques

FabricantManurhin Menti
ModèleK'MX 250 - mod. 250
Année2001
ConditionD'occasion

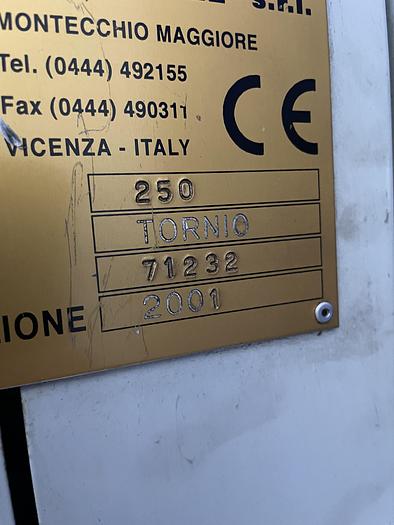

Numéro de série71232
Numéro de stockKMX250-2
