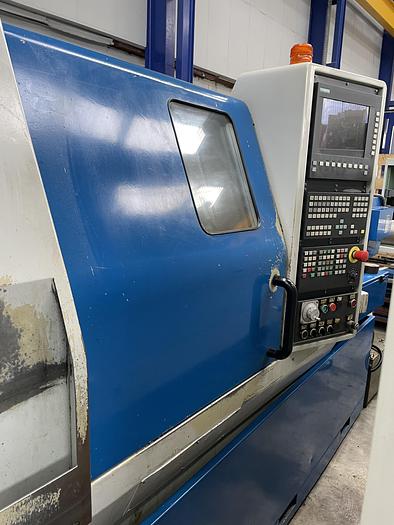

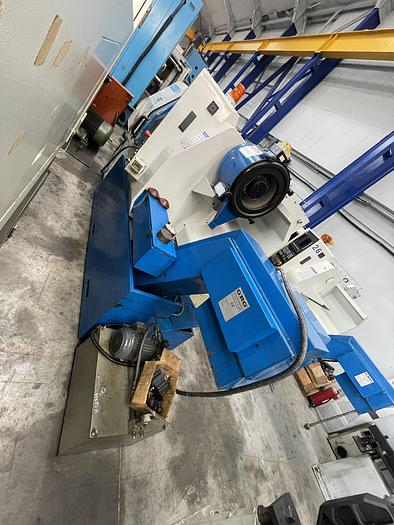

Manurhin Menti K'MX 250 - MENTI mod. 250 CNC lathe 3 axis

Manurhin Menti K'MX 250 - MENTI mod. 250 CNC lathe 3 axis

Contactez-nous pour le prix

ouAppelez 04 77 29 56 74

Description

Tour CN 3 axes avec embarreur

MENTI MANURHIN K'MX 250 - MENTI mod. 250

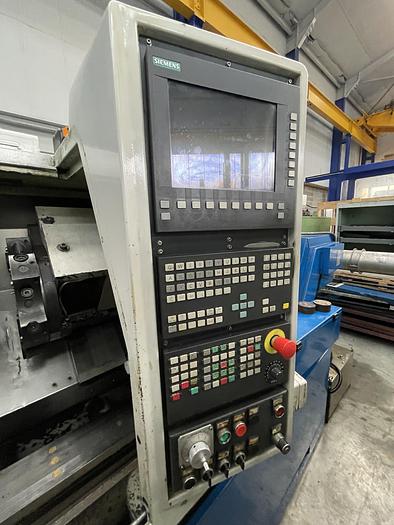

Année 2002 - CN Siemens 840D

Passage en barre Ø 60 mm

Alésage de broche Ø 66 mm

Ø de tournage maxi. 300 mm

Ø tournant maxi. 360 mm

Lg de tournage maxi. 600 mm

Distance entre pointes 870 mm

Broche (nez ISO-A6) rotation 0 à 4000 tr/min - 15 kW (S1)

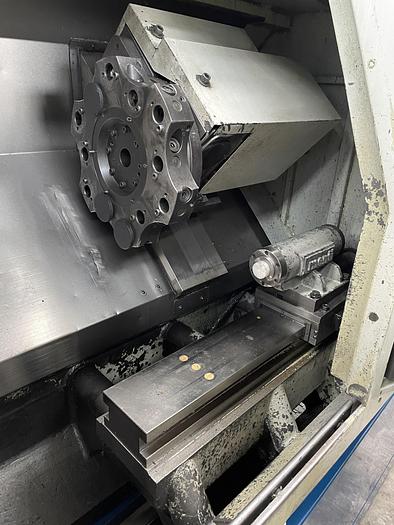

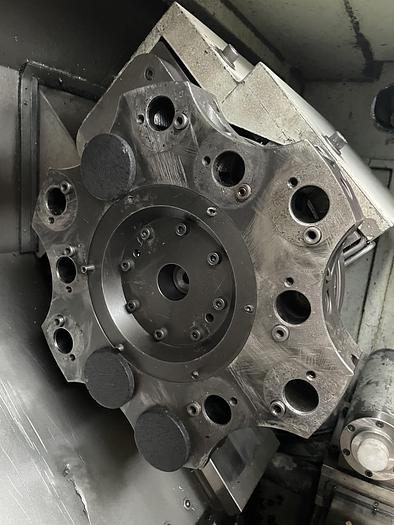

Tourelle Baruffaldi VDI 12 outils dont 6 tournants

Mandrin SMW-AUTOBLOK type 210HYN-S

Course axe X = 190 mm

Course axe Z = 650 mm

Avances rapides X,Z = 18 m/mn

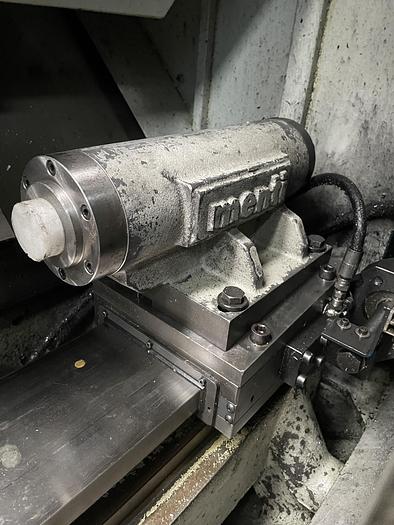

Déplacement contre-pointe piloté par un bouton sur pupitre ou par prog. (code M)

Extracteur de brouillard d’huile HS

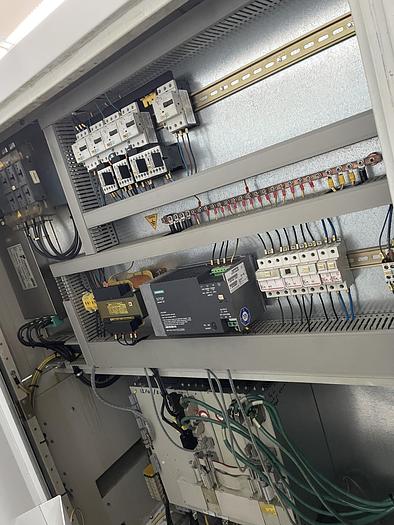

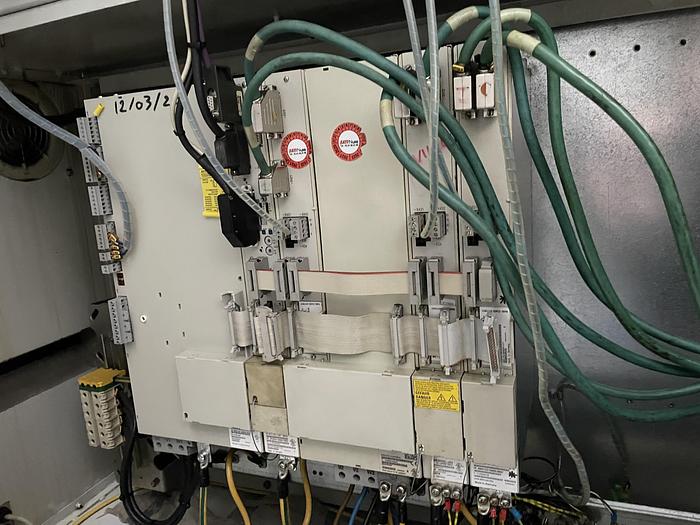

Carte de puissance HS

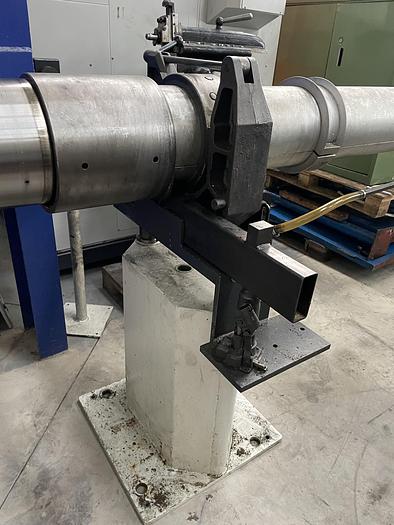

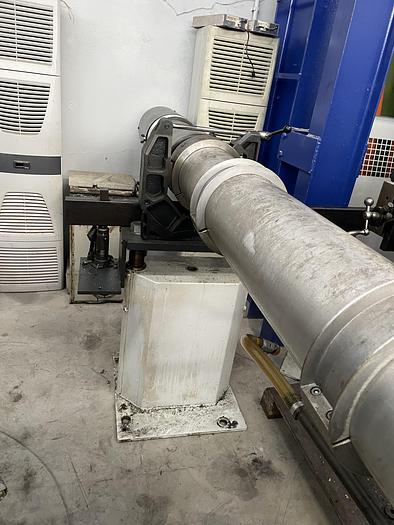

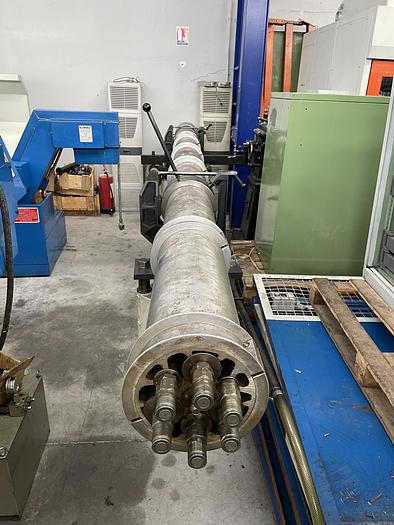

Equipé d'un embarreur hydraulique LNS Super Hydrobar (Suisse)

et de l'outillage (mors mandrins + porte-outils VDI).


--------------------------------------------------------------------------------------------------------------------------------------------


ENGLISH VERSION

3-axis CNC lathe with bar feeder (bar loader)

MENTI MANURHIN K'MX 250 - MENTI mod. 250

Year 2002 - CNC Siemens 840D

Bar capacity Ø 60 mm

Spindle bore Ø 66 mm

Max. turning Ø 300 mm (real Ø)

Max. turning Ø of the part 360 mm (admitted Ø)

Max. turning length 600 mm

Distance between centers 870 mm

Spindle (nose ISO-A6) speeds 0 to 4000 rpm - 15 kW (S1)

Baruffaldi turret VDI 12 positions includding 6 driven tools (live tooling)

Chuck SMW-AUTOBLOK type 210HYN-S

X-travel = 190 mm

Z-travel = 650 mm

Rapids X,Z = 18 m/mn

Tailstock movement by button or prog. (code M)

Filter mist out of order


Equipped with hydraulic bar feeder LNS Super Hydrobar (Swiss made bar loader)

And tooling package (jaws + VDI tool holders).

Caractéristiques

FabricantManurhin Menti
ModèleK'MX 250
Année2002
ConditionD'occasion
Numéro de série81154
Numéro de stockKMX250-1
