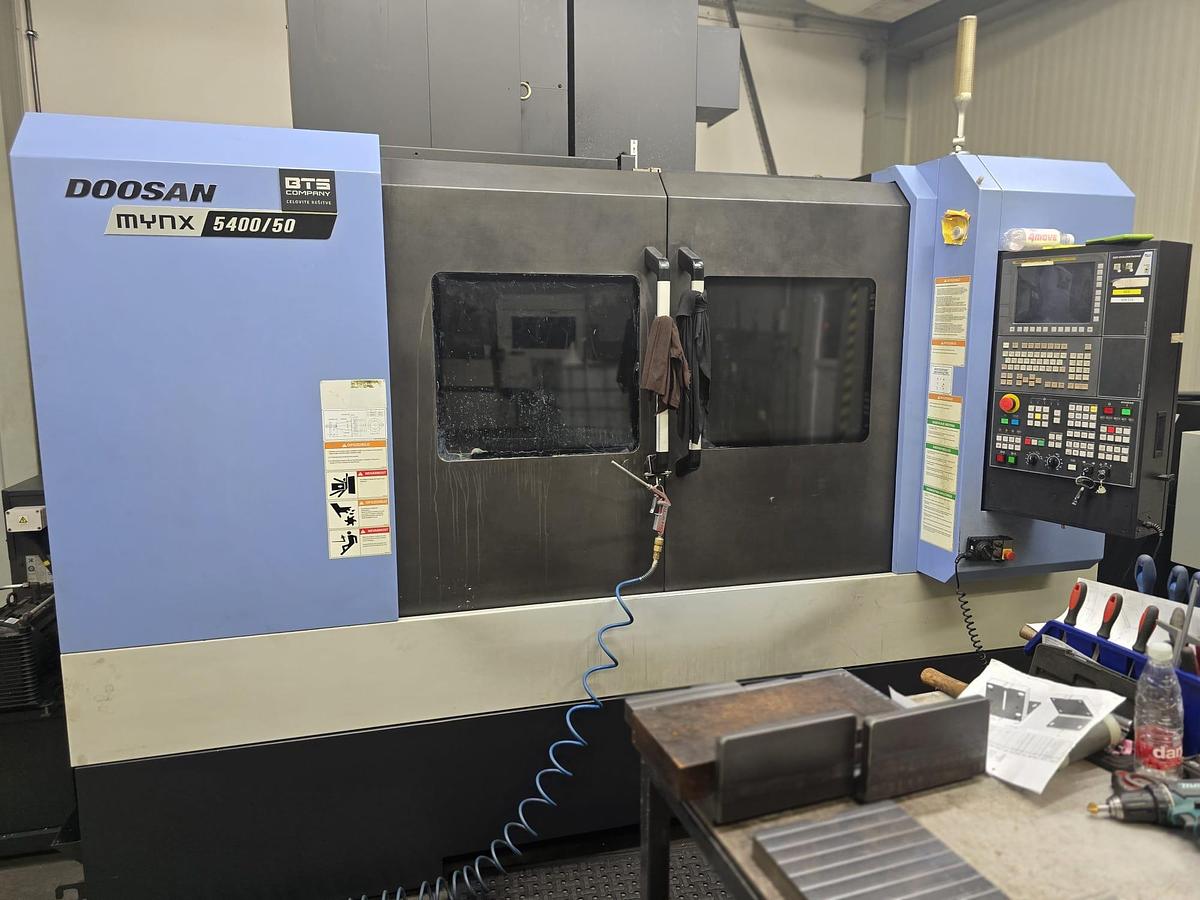

2019 DOOSAN Mynx 5400/50 vertical machining center

3-axis vertical machining center DOOSAN Mynx 5400/50

Make DOOSAN type Mynx 5400/50

Year 2019

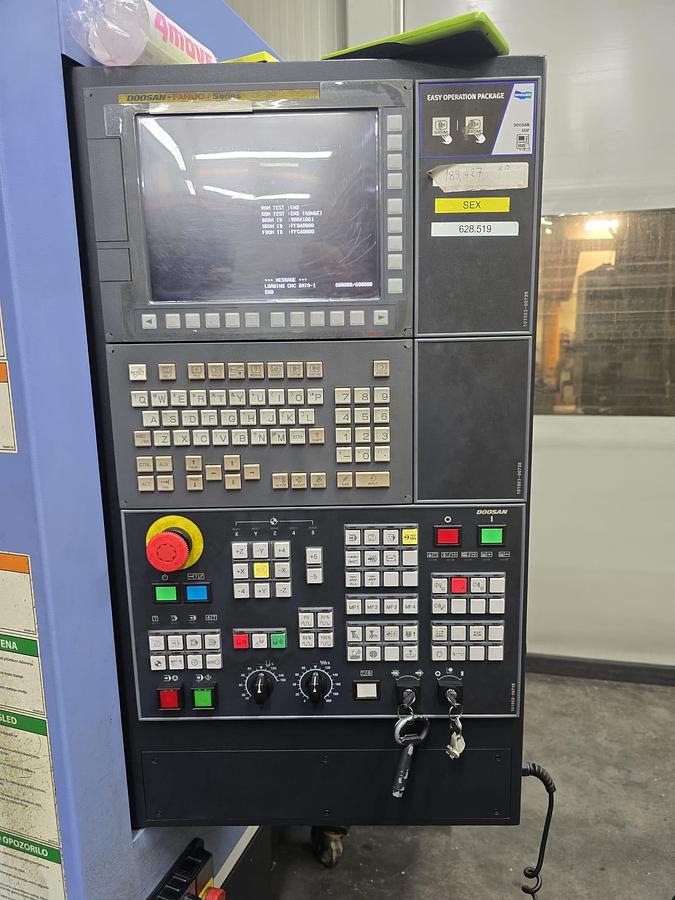

CNC Fanuc i Series

ISO 50-BT 50 spindle taper

X = 1020 x Y = 550 x Z = 530 mm

Table 1200 x 500 mm, max. admitted load 800 kg

Spindle speeds 6.000 RPM

ATC 24 positions

Rapids X, Y = 30 m/min and Z = 24 m/min

Coolant Through Spindle (CTS)

Weight 7000 kg

AC 380 V, 3 PE, 50/60 Hz / 48 kVA (80 A)

Centre d’usinage vertical 3 axes

Marque DOOSAN type Mynx 5400/50 3 axes

Année 2019

CN Fanuc i Series

X = 1020 x Y = 550 x Z = 530 mm

Table 1200 x 500 mm, charge admise 800 kg

Broche ISO 50 or BT 50 rotation maxi 6.000 tr/min

Changeur auto d’outils 24 positions

Avances rapides X, Y = 30 m/min et Z = 24 m/min

Arrosage au centre

Poids 7000 kg

Tension 3 x 380V, 50/60 Hz, Puissance totale 48 kVA (80 A)
